MT174-D2A42R566S52
MT174-D2A42R566S52MT174_3  018

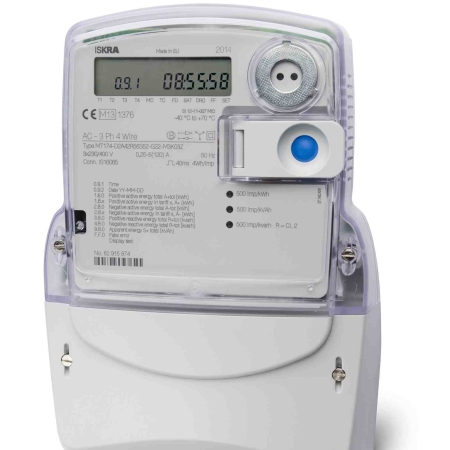

ISKRA MT174 Three-phase multifunction electronic meter, without modem or sim card

4.33 out of 5 based on 3 customer ratings
(3 customer reviews)

£80.00

Features

  • Solar PV Generation meter to collect FIT payments
  • 120 Amp Three-phase kWh meter
  • OFGEM/MID Approved No SI 12-11-007, latest generation ISKRA meter
  • Equivalent specification to Elster A1100 three phase meter
  • Import/Export Energy
  • Tariff control input
  • Small size modern design
  • Pulse output
  • Cost Effective



Out of stock

Product Description

Measurement features

  • Two way (“energy“) measurements
  • Active, Reactive and Apparent energy and demand in 3-phase 4- and 3-wire networks
  • Measurement by phases and polyphase, quantities of measurement: Voltages by phases, Currents by phases, Power factors by phases, Frequency
  • Measurement of instantaneous power

Tariff functions

Time-of-use (TOU) measurement of active energy and maximum demand (up to 4 tariffs, 10 seasons, 10 weekly programs, 10 daily definitions, 10 tariff change over inside individual daily tariff programs, 46 holidays)

Load profiles

Load profile recorder with up to 8 channels

Possibility to set the recording period on 5, 10, 15, 30, 45 or 60 minutes

Communication

IEC 1107 compliance

Two communication interfaces:

– Optical port

– RS485

Real-time clock (RTC)



Downloads:

MT174_UK_SMS

MT174_Technical_Specification_0-2_SMS

Additional Information

Weight 1.1 kg

3 reviews for ISKRA MT174 Three-phase multifunction electronic meter, without modem or sim card

  1. 5 out of 5

    :

    Ordered an MT174 for an install in Durham. Professional and quick service!

  2. 5 out of 5

    :

    Great communication. A pleasure to do business with.

  3. 3 out of 5

    :

    can i monitor the parameters of the device by web >

    • :

      Hi Mohanad this is a standard dumb meter with no comms. You would need a smart meter with coms like the MT382D.
