SolarCorner SOL-STEEL 020
SolarCorner SOL-STEEL 019SolarCorner SOL-STEEL 020SolarCorner SOL-STEEL 016SolarCorner SOL-STEEL 017SolarCorner SOL-STEEL 018

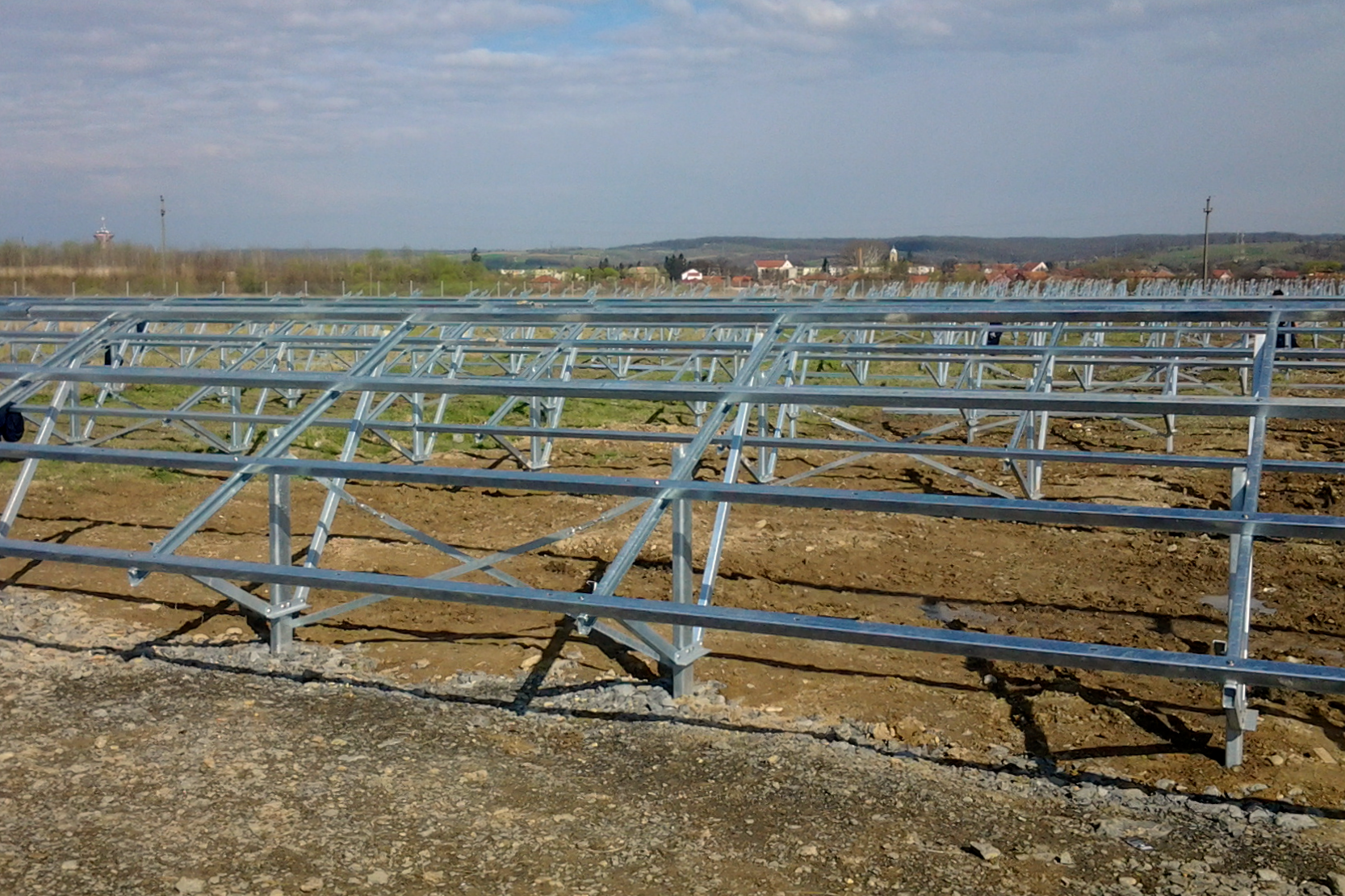

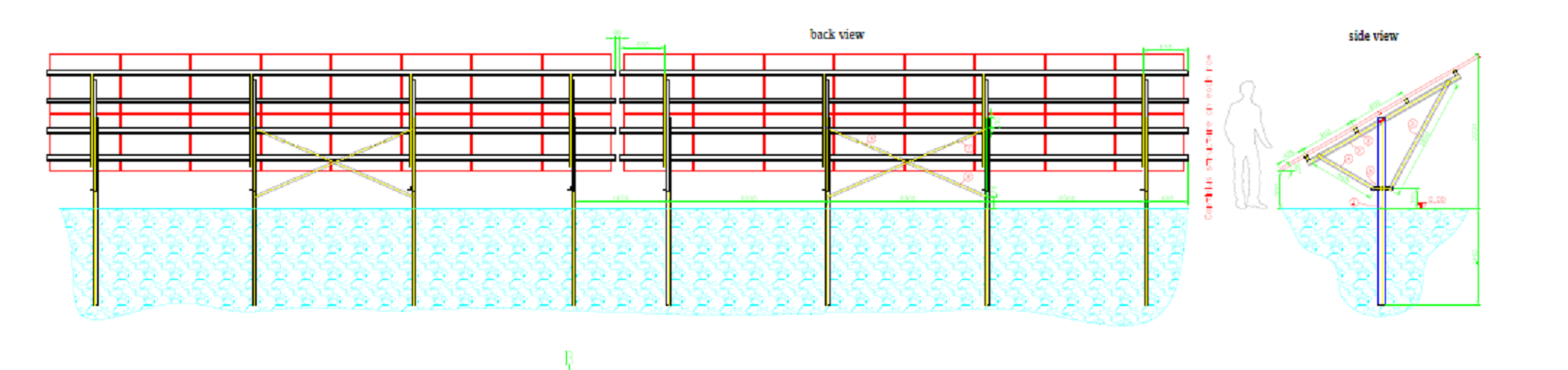

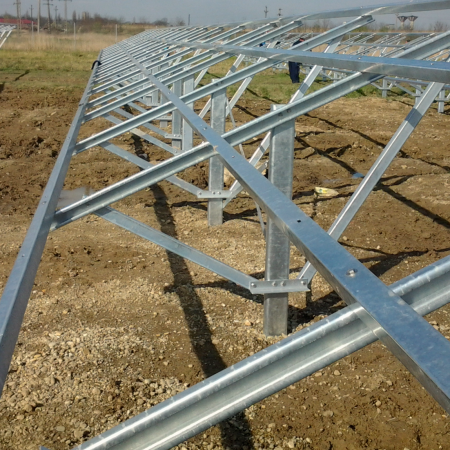

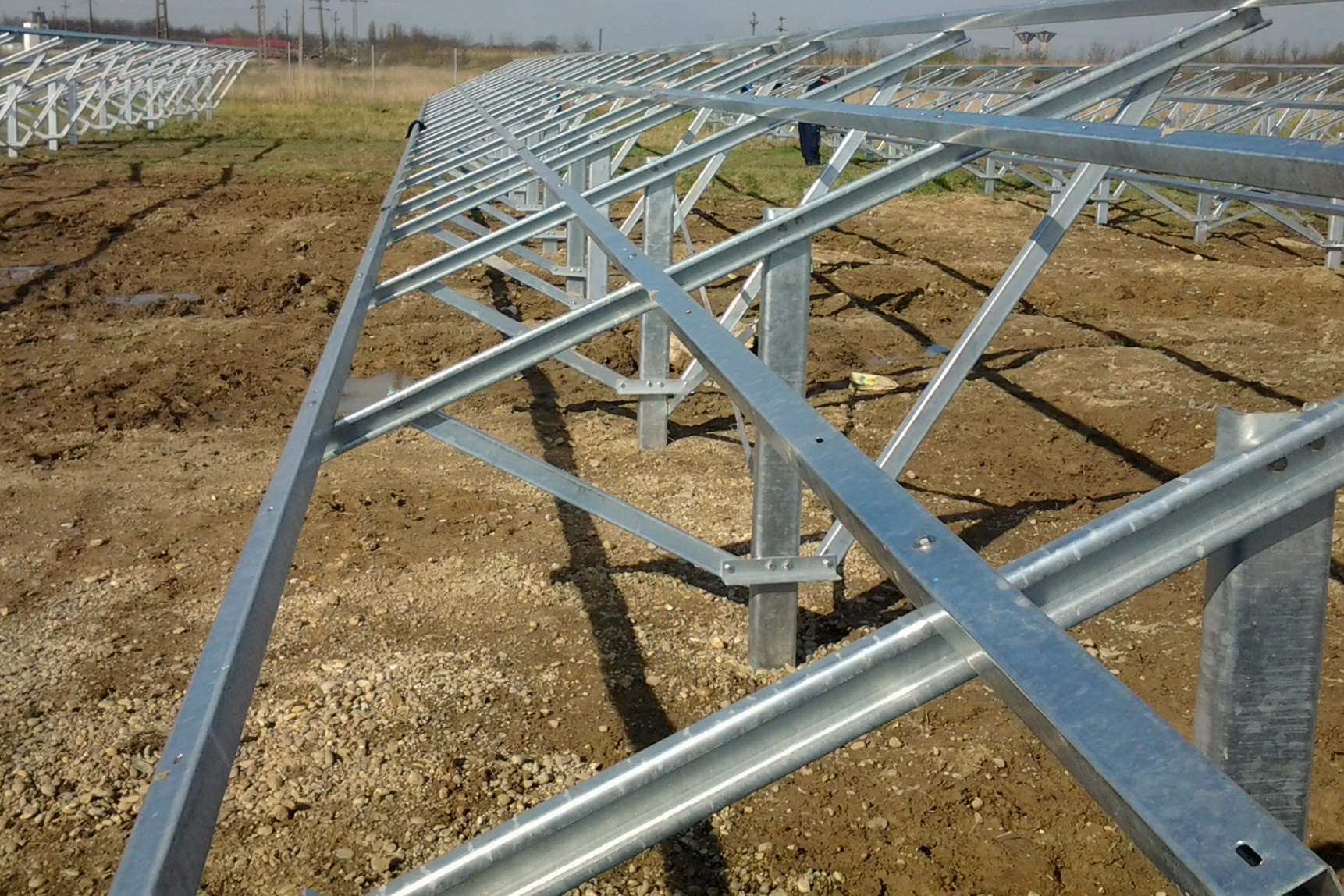

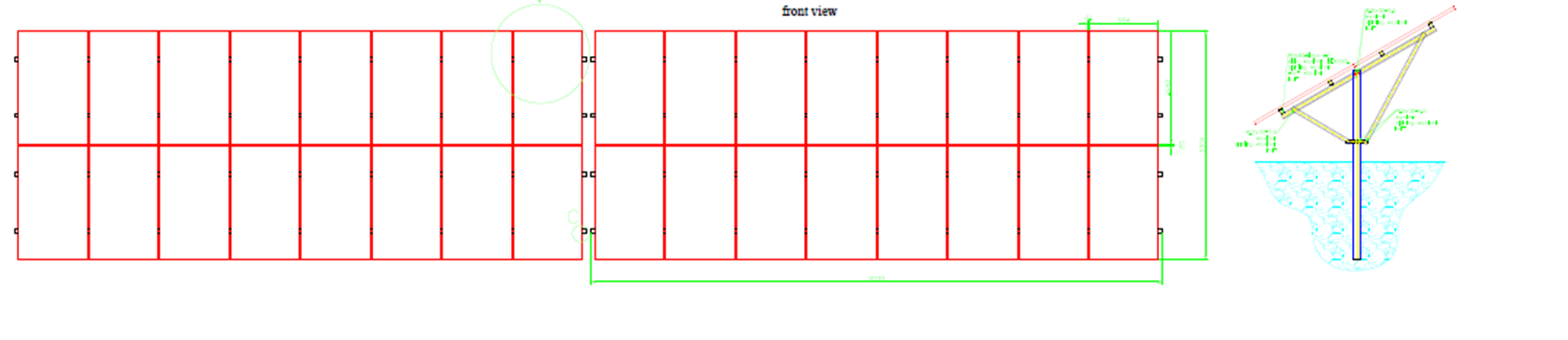

SolarCorner SOL-STEEL Ground mount system

  • Single pillar portrait system with 2 supporting arms
  •  hot-dip galvanised steel (EN 1461:2009) for ramming up to 1500mm into ground
  • average distance between posts is  2350mm,
  • very strong beams system suitable for high wind areas
  • 10 year manufacturers Warranty
  • 35 year expected life
  • 0ver 50 MW installed
  • competitive cost at about 10 p/Wp, subject to ground and location survey
  • SolarCorner SOL-ALU Catalogue
Categories: ,

Product Description

SOL-NAVITAS is a European manufacturer of quality SOL-ALU aluminium mounting systems and has vast experience in solar project design, installation and maintenance with over 150 mid sized projects completed and generating above average returns.

Based on this knowledge  SolarCorner offers :

  • turnkey solar PV power plants
  • preliminary designs
  • component specification of panels, mounting system, inverters and electrics
  • off grid system design

SolarCorner SOL-ALU Catalogue
