Split core CT
Split core CT dimensionsSC CT

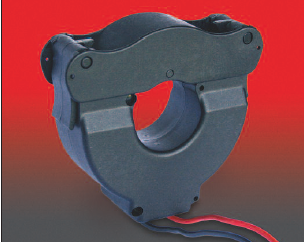

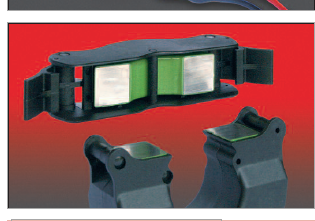

Split Core Current Transformers

A range of split core current transformers that offer an efficient method of measuring high voltage current without the need to break the conductor, each current transformer is supplied with colour coded leads of up to 3 meters for connection to the monitoring device such as our MT375 CT meter. The SC range of current transformers offers primary currents between 100-800A with 1 or 5A secondaries with class 1 accuracy performance. Internal diameter is 40mm, size of CT is 116 x 105 x 30mm.

DOWNLOADS:
Split Core CT Data Sheet

Product Description

These are big, robust and precise instruments with the range between 100 Amps and 800 Amps. For high Voltage installations where there is less limits for space of install. They connect directly to an MT375 CT meter. Aperture is 40mm.
